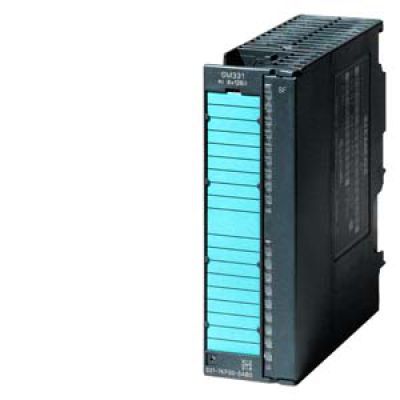

Analog input SM 331
6ES7331-7NF10-0AB0
356
SIMATIC S7-300, Analog input SM 331, isolated, 8 AI; +/-5/10V, 1-5 V, +/-20 mA, 0/4 to 20 mA, 16 bit, Single rooting (60 V COM.), 4-channel operation: 10 ms, 8-channel operation: 23-95ms, 1x 40-pole
- Thông tin sản phẩm
- Tài liệu
- Bình luận
|
6ES7331-7NF10-0AB0 |
||
|
Supply Voltage |
V |
24 V DC |
|
Input current |
mA |
100 mA (blackplane bus) ; 240 mA (Load Voltage) |
|
Analog Input |
|
8 AI 75 V; 20 V DC permanent, 75 V DC for max. 1 s (mark to space ratio 1:20) 40 mA |
|
Tín hiệu dòng |
mA |
0 to 20mA, -20 to 20mA, 4 to 20mA, -3.2 to 3.2mA, -10 to 10mA |
|
Tín hiệu áp |
V |
0 to 10V, -10 to 10V, 1 to 5V, -5 to 5V, -1 to 1V, -0.5 to 0.5V, -0.08 to 0.08V 1 to 10V, -2.5 to 2.5V, -0.25 to 0.25V, -0.05 to 0.05V |
|
Độ phân dải |
Bỉt |
16 Bit |
|
Front connector |
|
20 Pin |
|
Kích thước |
mm |
40x125x117(WxHxD) |
|
Chuẩn bảo vệ |
|
IP 20 |
|
Xuất sứ |
|
Đức |
Datasheet: Link dowload
