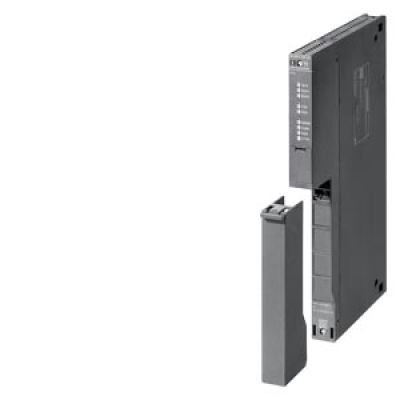

Communications processor CP 443-1 OPC UA
6GK7443-1UX00-0XE0
89
Communications processor CP 443-1 OPC UA; 1x 10/100/1000 Mbps RJ 45 port; OPC UA communic. (data access). operation as OPC UA server operation as OPC UA client via programmable user block according to PLCopen, OPC UA-compliant security mechanisms PG communication time synchronization web diagnostics OPC UA server certification
- Thông tin sản phẩm
- Tài liệu
- Bình luận
|
6GK7443-1UX00-0XE0 |
||
|
Supply voltage |
|
5 VDC |
|
Input current |
|
1.3 A |
|
Power loss |
|
6.5 W |
|
Performance data S7 communication
As OPC UA server
As OPC UA client
|
Max Max with PG connections to clients number of variables possible connections number of variables |
2
10 64000
5 10000 |
|
Transfer rate |
1st 2nd |
10...1000Mbit/s 10…100Mbit/s |
|
Temperature during operation |
Celsius Degree |
0-60 |
|
Temperature during storage/trans |
Celsius Degree |
-40 - +70 |
|
Humidity |
% |
95 |
|
Weight |
gram |
700 |
|
Dimension( W-H-D) |
mm |
25- 290- 210 |
|
Country of origin |
|
Germany |
