CPU 412-1
6ES7412-1XJ07-0AB0
201

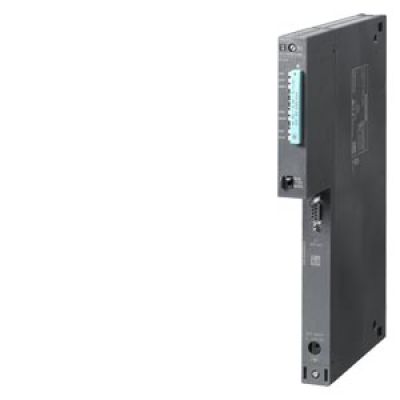

SIMATIC S7-400, CPU 412-1 Central processing unit with: Work memory 512 KB, (256 KB code, 256 KB data), interface MPI/DP 12 Mbit/s
- Thông tin sản phẩm
- Tài liệu
- Bình luận
|
6ES7412-2XK07-0AB0 |
||
|
Power Supply |
V |
5 - 15V DC Via power syste m |
|
Inrrush Cunrrent |
A |
0 - 20mA via power Supply |
|
Digital inputs |
Not Integrated |
|
|
Digital outputs |
Not Integrated |
|
|
Analog inputs |
Not Integrated |
|
|
Analog outputs |
Not Integrated |
|
|
Cổng giao tiếp |
1x MPI / PROFIBUS DP, RS 485 |
|
|
Giao thức truyền thông |
MPI, PROFIBUS DP maste, PROFIBUS DP slave |
|
|
Phần mềm |
STEP 7 V5.4 or higher with HSP 261 |
|
|
Ngôn ngữ lập trình |
LAD, FBD, STL, SCL, CFC, GRAPH, HiGraph® |
|
|
Working Memory |
Kbyte |
512 |
|
Load Memory |
Mbyte |
expandable FEPROM: Yes, with Memory Card (FLASH) expandable FEPROM, max: 64 Mbyte integrated RAM, max: 512 kbyte expandable RAM: Yes, with Memory Card (RAM) expandable RAM max: 64 Mbyte |
|
Modules connect |
Number of expansion units, max: 21 Connectable OPs: 47 Multicomputing: Yes; 4 CPUs max. (with UR1 or UR2) |
|
|
Nhiệt độ môi trường |
°C |
0-60°C |
|
Chuẩn bảo vệ |
Not Integrated |
|
|
Kích thước |
mm |
25x290x219 (WxHxD) |
|
Xuất sứ |
Đức |
Datasheet: link download
Phần mềm Step7 : link dowload
