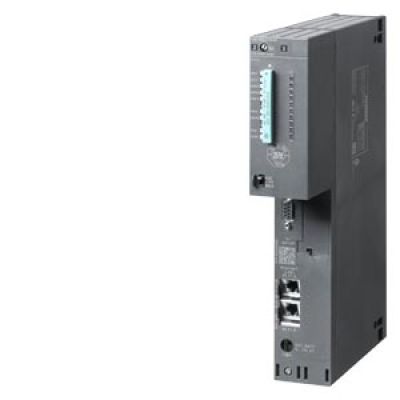

CPU 416F-3
6ES7416-3FS07-0AB0
322
SIMATIC S7-400, CPU416F-3 PN/DP Central processing unit with: Work memory 16 MB, (8 MB code, 8 MB data), interfaces 1st interface MPI/DP 12 Mbit/s, (X1), 2nd interface Ethernet/PROFINET (X5) 3rd interface IF 964-DP plug-in (IF1)
- Thông tin sản phẩm
- Tài liệu
- Bình luận
|
6ES7416-3FS07-0AB0 |
||
|
Power Supply |
V |
5 - 15V DC Via power System |
|
Inrrush Cunrrent |
A |
0 - 20mA Via Power Supply |
|
Digital inputs |
Not Integrated |
|
|
Digital outputs |
Not Integrated |
|
|
Analog inputs |
Not Integrated |
|
|
Analog outputs |
Not Integrated |
|
|
Cổng giao tiếp |
1 x MPI/PROFIBUS DP, 1xPROFINET DP(2ports), 1xPROFIBUS DP RS 485: 1xCombined MPI/PROFIBUS DP 1xPROFIBUS DP with IF 964-DP |
|
|
Giao thức truyền thông |
MPI, PROFIBUS DP maste, PROFIBUS DP slave, PROFINET |
|
|
Phần mềm |
STEP 7 V5.5 or higher with HSP 262 |
|
|
Ngôn ngữ lập trình |
LAD, FBD, STL, SCL, CFC, GRAPH, HiGraph® |
|
|
Working Memory |
Mbyte |
16 |
|
Load Memory |
Mbyte |
expandable FEPROM: Yes, with Memory Card (FLASH) expandable FEPROM, max: 64 Mbyte integrated RAM, max: 1Mbyte expandable RAM: Yes, with Memory Card (RAM) expandable RAM max: 64 Mbyte |
|
Modules connect |
Number of expansion units, max: 21 Connectable OPs: 95 Multicomputing: Yes; 4 CPUs max. (with UR1 or UR2) |
|
|
Nhiệt độ môi trường |
°C |
0-60°C |
|
Chuẩn bảo vệ |
Not Integrated |
|
|
Kích thước |
mm |
50x290x219 (WxHxD) |
|
Xuất xứ |
Đức |
Datasheet: link download
Phần mềm Step7 : link dowload
