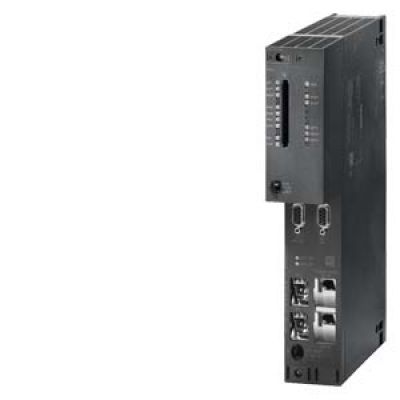

CPU 417-5H
6ES7417-5HT06-0AB0
319

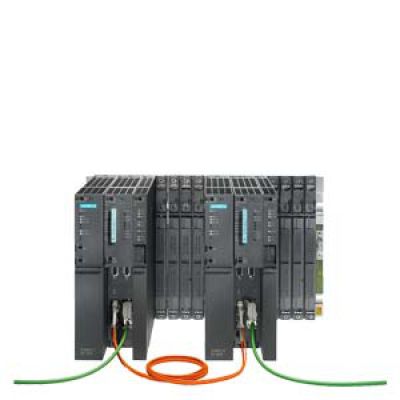

SIMATIC S7-400H, CPU 417-5H, central processing unit for S7-400H and S7-400F/FH, 5 interfaces: 1x MPI/DP, 1x DP, 1x PN and 2 for sync modules, 32 MB memory (16 MB data/16 MB program)
- Thông tin sản phẩm
- Tài liệu
- Bình luận
|
6ES7417-5HT06-0AB0 |
||
|
Power Supply |
V |
5 - 15V DC Via power System |
|
Inrrush Cunrrent |
A |
0 - 20mA Via Power Supply |
|
Digital inputs |
Not Integrated |
|
|
Digital outputs |
Not Integrated |
|
|
Analog inputs |
Not Integrated |
|
|
Analog outputs |
Not Integrated |
|
|
Cổng giao tiếp |
2xRS 485 2xRJ 45 |
|
|
Giao thức truyền thông |
MPI, PROFIBUS DP maste, PROFIBUS DP slave, PROFINET |
|
|
Phần mềm |
STEP 7 V5.5 or higher with HF1 262 |
|
|
Ngôn ngữ lập trình |
LAD, FBD, STL, SCL, CFC, GRAPH, HiGraph® |
|
|
Working Memory |
Mbyte |
32 |
|
Load Memory |
Mbyte |
expandable FEPROM: Yes, with Memory Card (FLASH) expandable FEPROM, max: 64 Mbyte integrated RAM, max: 1Mbyte expandable RAM: Yes, with Memory Card (RAM) expandable RAM max: 64 Mbyte |
|
Modules connect |
Number of expansion units, max: 21 Multicomputing: No |
|
|
Nhiệt độ môi trường |
°C |
0-60°C |
|
Chuẩn bảo vệ |
Not Integrated |
|
|
Kích thước |
mm |
50x290x219 (WxHxD) |
|
Xuất xứ |
Đức |
Datasheet: link download
Phần mềm Step7 : link dowload
