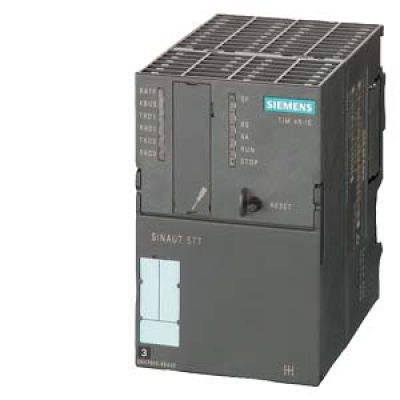

SINAUT ST7, TIM 4R-IE communication module
6NH7800-4BA00
107
SINAUT ST7, TIM 4R-IE communication module for SIMATIC S7-300, S7-400, PC; with two RS232/RS485 interfaces for SINAUT Communication via standard WAN and two RJ45 interfaces for SINAUT communication via IP-based networks (WAN or LAN)
- Thông tin sản phẩm
- Tài liệu
- Bình luận
|
6NH7800-4BA00 |
||
|
Supply voltage |
|
24 VDC |
|
Input current |
|
0.2 A |
|
Power loss |
|
4.6 W |
|
Industrial Ethernet interface |
|
RJ45 port |
|
Performance data S7 communication
Multi-protocol mode Telecontrol |
Max With OP connections with PG connections
|
64 62
2
128 Node station, substation, TIM control center
|
|
Transfer rate |
Industrial Ethernet RS 232 |
10...100Mbit/s 50…38400bit/s |
|
Temperature during operation |
Celsius Degree |
0-60 |
|
Temperature during storage/trans |
Celsius Degree |
-40 - +70 |
|
Humidity |
% |
95 |
|
Weight |
gram |
400 |
|
Dimension( W-H-D) |
mm |
80- 125- 120 |
|
Country of origin |
|
Germany |
Datasheet: Link Download
Software: Link Download
